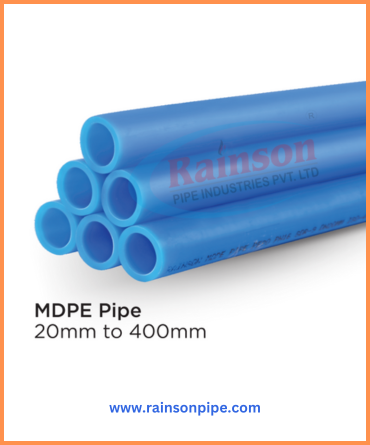

MDPE Pipe

MDPE or Medium-density Polyethylene, is a type of common plastic that has a uniquely specific density. It has very high shock and drop resistance properties, is fewer notches sensitive and is far more resistant to cracking than other plastics like HDPE. A versatile material MDPE is used in a number of other industries and can be used in gas pipes, carrier bags and screw closures. It has a sound chemical resistance and is generally stable at room temperature. Furthermore, MDPE is particularly flexible, more cost-effective than other plastics and a metal used in plumbing, is easily recycled and can handle swift temperature changes.

Download Datasheet

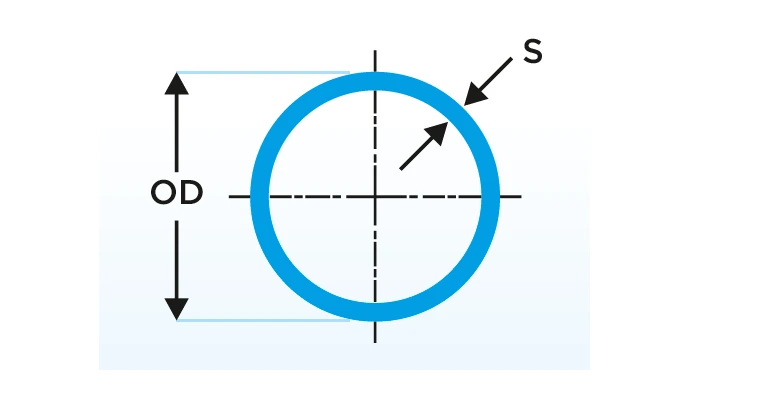

Standard Dimension Ration (SDR) & Corresponding Wall Thickness of HDPE Pipes as per IS 4984:2016
SDR				SDR 9		SDR 11		SDR 13.6		SDR 17		SDR 21		SDR 26		SDR 33		SDR 41
SERIES				S 4		S 5		S 6.3		S 8		S 10		S 12.5		S 16		S 20
Nominal Pressure (PN) BAR
PE 80				PN 16		PN 12.5		PN 10		PN 8		PN 6		PN 5		PN 4		PN 3.2
PE 100				PN 20		PN 16		PN 12.5		PN 10		PN 8		PN 6		PN 5		PN 4
O.D.		Avg.	Ovality	Wall Thickness in MM
Min.	Max.	O.D.	Ovality	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT	WT
mm	mm	mm	mm	Min	max	Min	max	Min	max	Min	max	Min	max	Min	max	Min	max	Min	max
20	20.3	20.15	1.2	2.3	2.7	2	2.3
25	25.3	25.15	1.2	3.0	3.4	2.3	2.7	2	2.3
32	32.3	32.15	1.3	3.6	4.1	3.0	3.4	2.4	2.8	2	2.3
40	40.4	40.20	1.4	4.5	5.1	3.7	4.2	3.0	3.5	2.4	2.8	2.0	2.3
50	50.4	50.2	1.4	5.6	6.3	4.6	5.2	3.7	4.2	3	3.4	2.4	2.8	2	2.3
63	63.4	63.20	1.5	7.1	8.0	5.8	6.5	4.7	5.3	3.8	4.3	3.0	3.4	2.5	2.9
75	75.5	75.25	1.6	8.4	9.4	6.8	7.6	5.6	6.3	4.5	5.1	3.6	4.1	2.9	3.3
90	90.6	90.3	1.8	10.1	11.3	8.2	9.2	6.7	7.5	5.4	6.1	4.3	4.9	3.5	4
110	110.7	110.35	2.2	12.3	13.7	10	11.1	8.1	9.1	6.6	7.4	5.3	6.0	4.2	4.8
125	125.8	125.4	2.5	14.0	15.6	11.4	12.7	9.2	10.3	7.4	8.3	6.0	6.7	4.8	5.4
140	140.9	140.45	2.8	15.7	17.4	12.7	14.1	10.3	11.5	8.3	9.3	6.7	7.5	5.4	6.1
160	161	160.5	3.2	17.9	19.8	14.6	16.2	11.8	13.1	9.5	10.6	7.7	8.6	6.2	7
180	181.1	180.55	3.6	20.1	22.3	16.4	18.2	13.3	14.8	10.7	11.9	8.6	9.6	6.9	7.7
200	201.2	200.6	4	22.4	24.8	18.2	20.2	14.7	16.3	11.9	13.2	9.6	10.7	7.7	8.6
225	226.4	225.7	4.5	25.2	27.9	20.5	22.7	16.6	18.4	13.4	14.9	10.8	12	8.6	9.6
250	251.5	250.75	5	27.9	30.8	22.7	25.1	18.4	20.4	14.8	16.4	11.9	13.2	9.6	10.7
280	281.7	280.85	9.8	31.3	34.6	25.4	28.1	20.6	22.8	16.6	18.4	13.4	14.9	10.7	11.9
315	316.9	315.95	11.1	35.2	38.9	28.6	31.6	23.2	25.7	18.7	20.7	15.0	16.6	12.1	13.5	9.7	10.8	7.7	8.6
355	357.2	356.1	12.5	39.7	43.8	32.3	35.6	26.1	28.9	21.1	23.4	16.9	18.7	13.6	15.1	10.9	12.1	8.7	9.7
400	402.4	401.20	14	44.7	49.3	36.3	40.1	29.4	32.5	23.7	26.2	19.1	21.2	15.3	17	12.3	13.7	9.8	10.9
450	452.7	451.35	15.6	50.3	55.5	40.9	45.1	33.1	36.6	26.7	29.5	21.5	23.8	17.2	19.1	13.8	15.3	11	12.2
500	503	501.5	17.5	55.8	61.5	45.4	50.1	36.8	40.6	29.7	32.8	23.9	26.4	19.1	21.2	15.3	17	12.3	13.7
560	563.4	561.7	19.6	62.5	68.9	50.8	56	41.2	45.5	33.2	36.7	26.7	29.5	21.4	23.7	17.2	19.1	13.7	15.2
630	633.8	631.9	22.1	70.3	77.5	57.2	63.1	46.3	51.1	37.4	41.3	30.0	33.1	24.1	26.7	19.3	21.4	15.4	17.1
710	716.4	713.20	24.9	79.3	87.4	64.5	71.1	52.2	57.6	42.1	46.5	33.9	37.4	27.2	30.1	21.8	24.1	17.4	19.3
800	807.2	803.6		89.3	98.4	72.6	80	58.8	64.8	47.4	52.3	38.1	42.1	30.6	33.8	24.5	27.1	19.6	21.7
900	908.1	904.05				81.7	90	66.2	73	53.3	58.8	42.9	47.3	34.4	38.3	27.6	30.5	22	24.3
1000	1009	1004.5				90.8	100	73.5	80.9	59.3	65.4	47.7	52.6	38.2	42.2	30.6	33.5	24.5	27.1

Material	Medium Density Polyethylene
Grade	PE100, PE80, PE63 (Special Pre-compounded Material)
Size Range	DN 20 mm to DN 315 mm
Pressure Rating	2.5 kg/cm² to 16 kg/cm²
Temperature Range	40°C to 60°C
Color	Blue, Black with Blue Stripes, Yellow
Pipe Form	As per customer requirement
Standards	ISO 4427:2007, IS 4984:2016, DIN 8074 – Safe for Drinking Water
